商品の詳細:
|
| 製品モデル: | BIT-Ma-U1-MC0808 | HDCP対応: | HDCP対応 |
|---|---|---|---|
| ビデオ解像度: | 最大4k x 2k@50/60Hzまで | 色空間に: | RGB、YCBCR 4：4：4/4：2：2/4：2：0 |
| 同軸オーディオ形式: | LPCM 2.0、Dolby Digital / Plus | HDR形式: | HDR10、HDR10+、Dolby Vision、HLG |
| サイズ: | 440mm（l）x 200mm（w）x 44.5mm（h） | 重さ: | 4kg _ |
| 消費電力: | 43w | 保証: | 3年 |

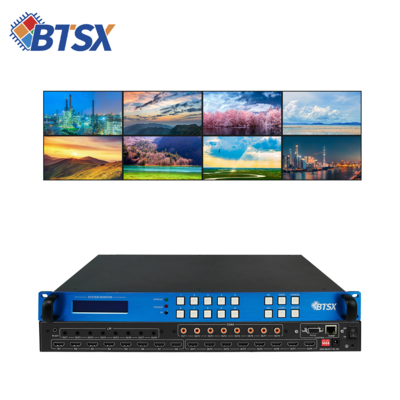

4K60 HDMI Switcher 2X3 2X4 Video Wall Controller MOQ Multi Display 8 in 8 Out Multimedia Conference Halls
In a highly competitive market, the BIT-Ma-U1-MC0808 stands out with its superior performance and future-proof features. It supports a wide range of input and output resolutions, including 4K60, ensuring compatibility with the latest display technologies. Its pure hardware design ensures reliability and ease of use, while its firmware upgrade capability ensures it remains at the forefront. Whether for corporate presentations, creative studios, or educational institutions, the BIT-Ma-U1-MC0808 delivers a competitive edge for high-end multi-screen applications.
4K60 HDMI Switcher 2X3 2X4 Video Wall Controller MOQ Multi Display 8 in 8 Out Multimedia Conference Halls Features and Application scenarios
1) Comply with HDMI2.0 and HDCP 2.2/1.4 specifications
2) Video resolution up to 4K x 2K@60Hz
3) Support 18Gbps video bandwidth
4) Support Dolby Vision, HDR10+ and HLG
5) All HDMI output ports support 4K->1080P video scaling function
6) Supported HDMI audio formats up to 7.1 high-definition audio channels
7) Support stripping audio from HDMI source to coaxial audio port and analog audio port output
8) Support dial code for EDID selection
9) 1U rack mount design with front panel LCD display

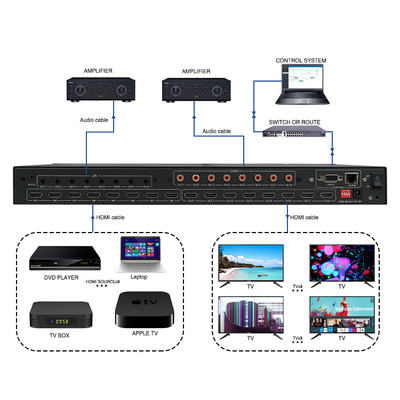

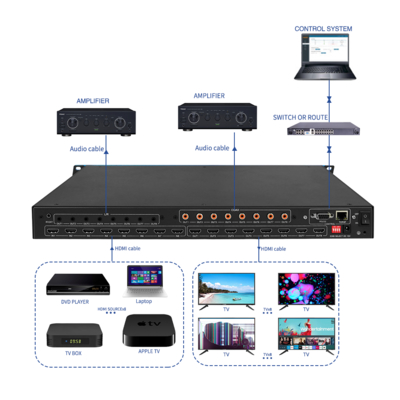

10) Control by front panel buttons, infrared remote control, host computer (RS-232 and RJ45)
Widely used in multimedia conference halls, TV teaching, large-screen display engineering and other places.
4K60 HDMI Switcher 2X3 2X4 Video Wall Controller MOQ Multi Display 8 in 8 Out Multimedia Conference Halls Specifications
| Product Model | BIT-Ma-U1-MC0808 |
| HDCP compatible | HDCP compatible |
| video resolution | Up to 4K X 2K@50/60Hz |
| color space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
| coaxial audio format | LPCM 2.0, Dolby Digital / Plus |
| HDR format | HDR10, HDR10+, Dolby Vision, HLG |
| size | 440mm (L)X 200mm (W) X 44.5mm (H) |
| weight | 4kg _ |
| power consumption | 43W |
| Warranty | 3 Years |
